Incubated Shakers / Orbital Shaking Incubators
We are Manufacturer, Supplier, Exporter of Incubator Shakers, Shaking Incubators, Orbital Shaking Incubators, Incubated Shakers, Temperature Controlled Shaker Incubators, Stackable Shaking Incubators, Floor Incubator Shakers. Our setup is situated in Pune, Maharashtra, India.
Incubator Shakers :
An incubator shaker can be viewed a mix of an incubator and a shaker. It has an potential to shake while preserving ideal conditions for incubating microbes or DNA replications. This equipment is very beneficial since, in order for a cell to grow, it needs oxygen and vitamins that require shaking so that they can be allotted evenly around the culture.e dissolved oxygen attention will flip out to be zero.

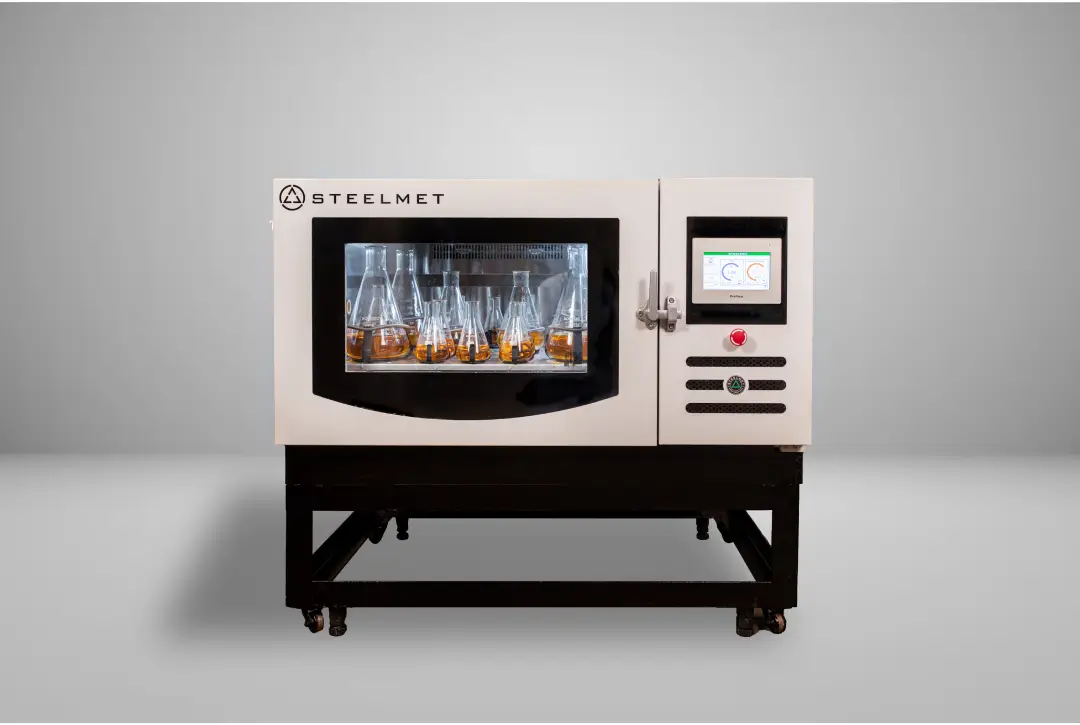

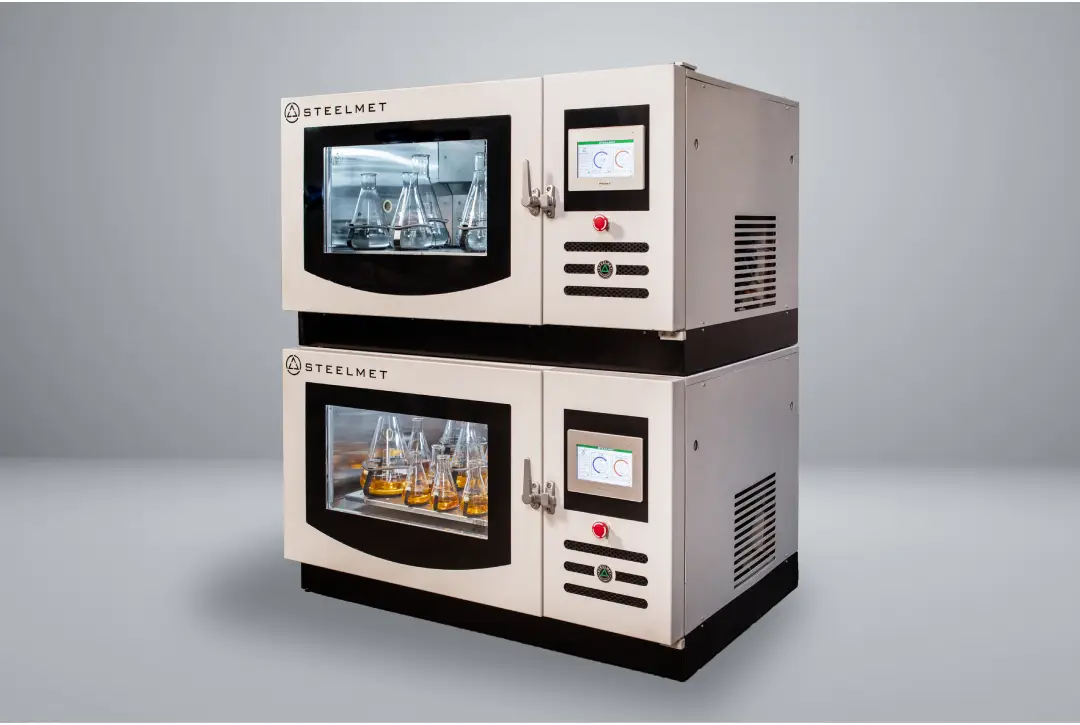

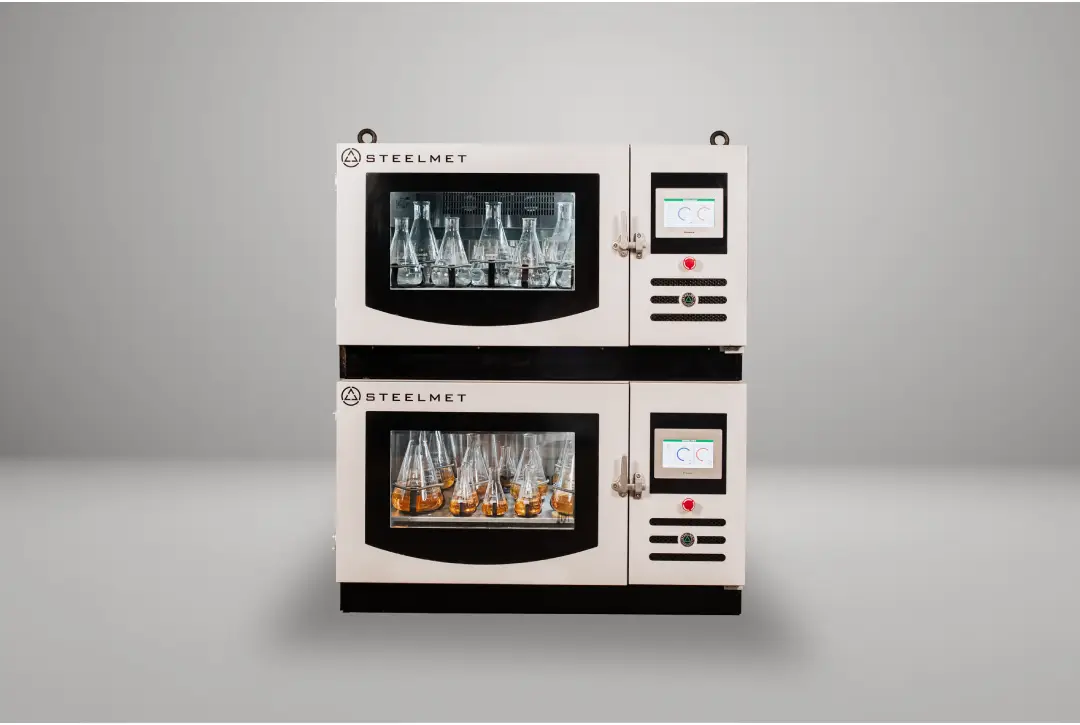

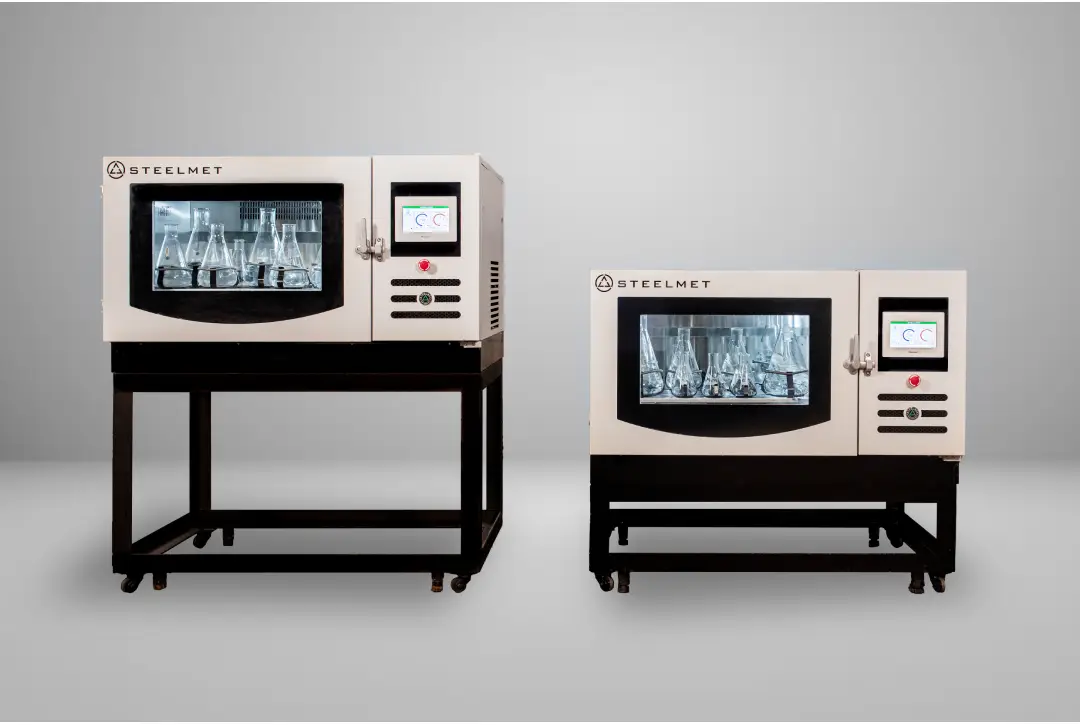

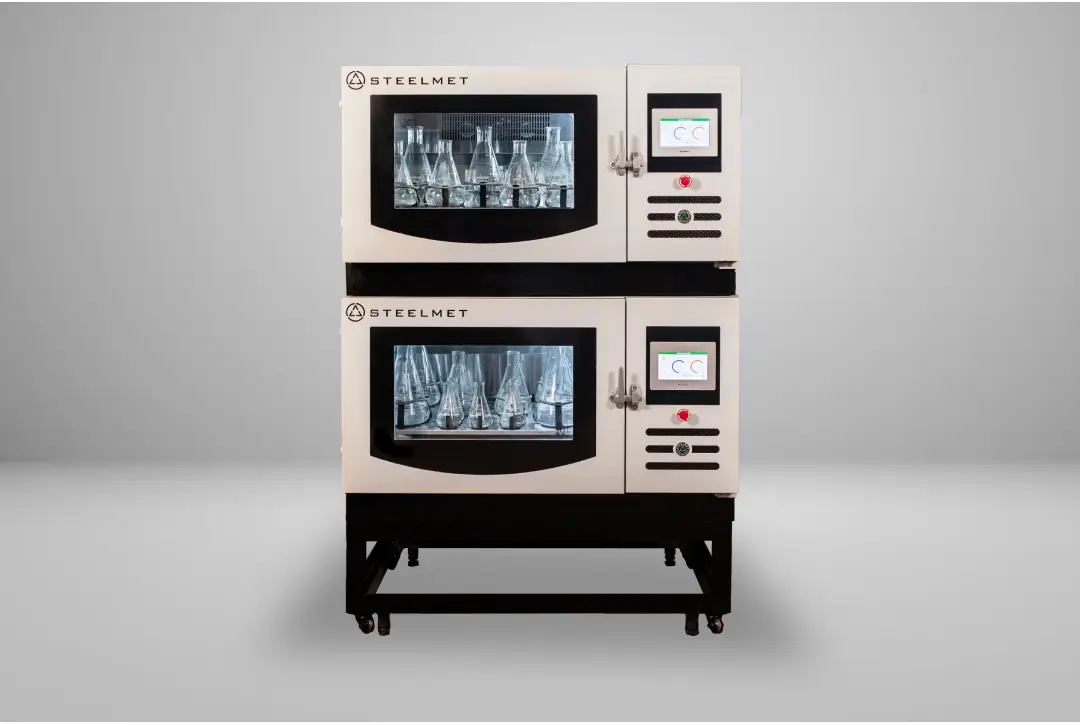

Stackable Incubator Shaker Model - Manthan IS42 ( Can be stacked up to 3 units )
| Capacity | : | 42 clamps of 250 ml or 25 clamps of 500 ml or 15 clamps of 1000 ml or 09 clamps of 2000ml or mix capacity as per user requirement ( select any one ). Threaded holes to hold assorted clamps |
| Platform Size | : | 700mm 550mm |
| Working Chamber | : | Dx W x H = 685mm x 795 x 530mm |
| Overall Dimension | : | D x W x H = 805mm x 1254mm x 730mm approx. |
| Shaking Orbit | : | 12.5mm or 25mm or 50mm ( customized orbit available on request ) |
| Speed | : | 500 RPM @ 12.5 mm Orbital Stroke 400 RPM @ 25 mm Orbital Stroke 300 RPM @ 50 mm Orbital Stroke |
| Control system | : | Microprocessor based control system or HMI PLC with data logging facility provided ( optional ) |
| Temp range | : | 15 Degree Celsius below ambient to 60 Degree Celsius ( Mini temp 10 degree celsius ) RPM accuracy:- ( ± ) 3 RPM or better |
| Temp accuracy | : | ( ± ) 0.2 Degree Celsius or better |
| Temp uniformity | : | ( ± ) 1 Degree Celsius or better |
| RPM accuracy | : | ( ± ) 3 RPM or better |
| Alarm | : | High temperature & low temperature alarm provided. |
| Mechanism | : | Mechanism:- Heavy duty long-lasting mechanism. |
| Illumination | : | Inspection lamp provided. Illumination unit for photosynthesis can be provided ( optional ) |
| Power required | : | 230 V, 50 Hz single phase, 15 amp stabilized. |

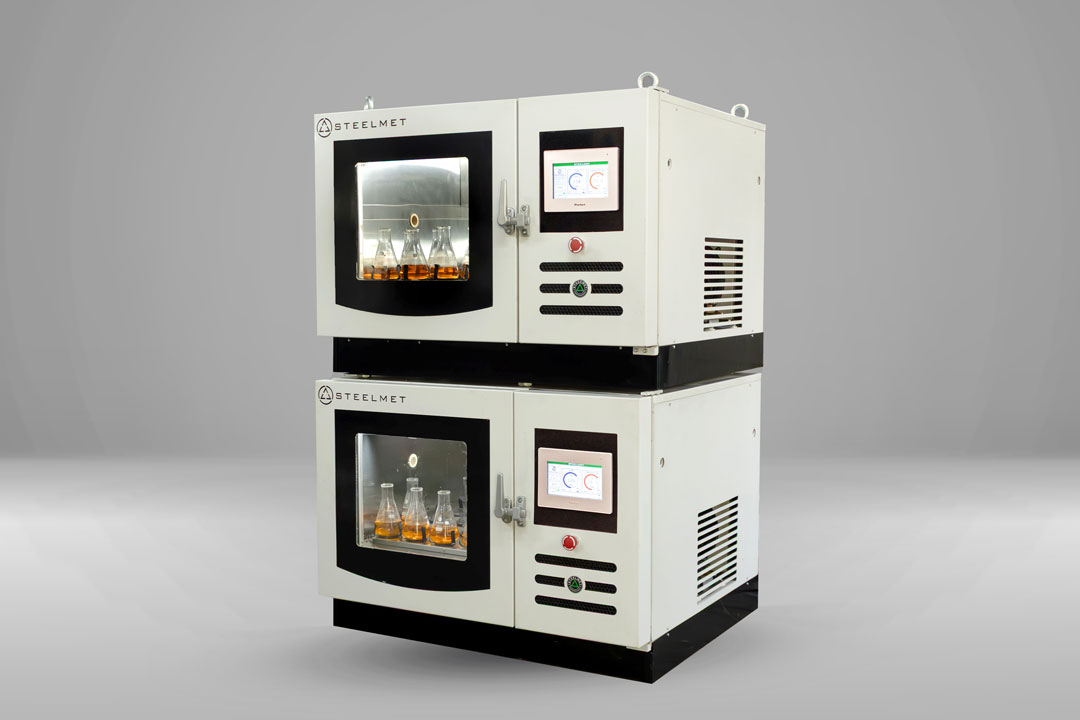

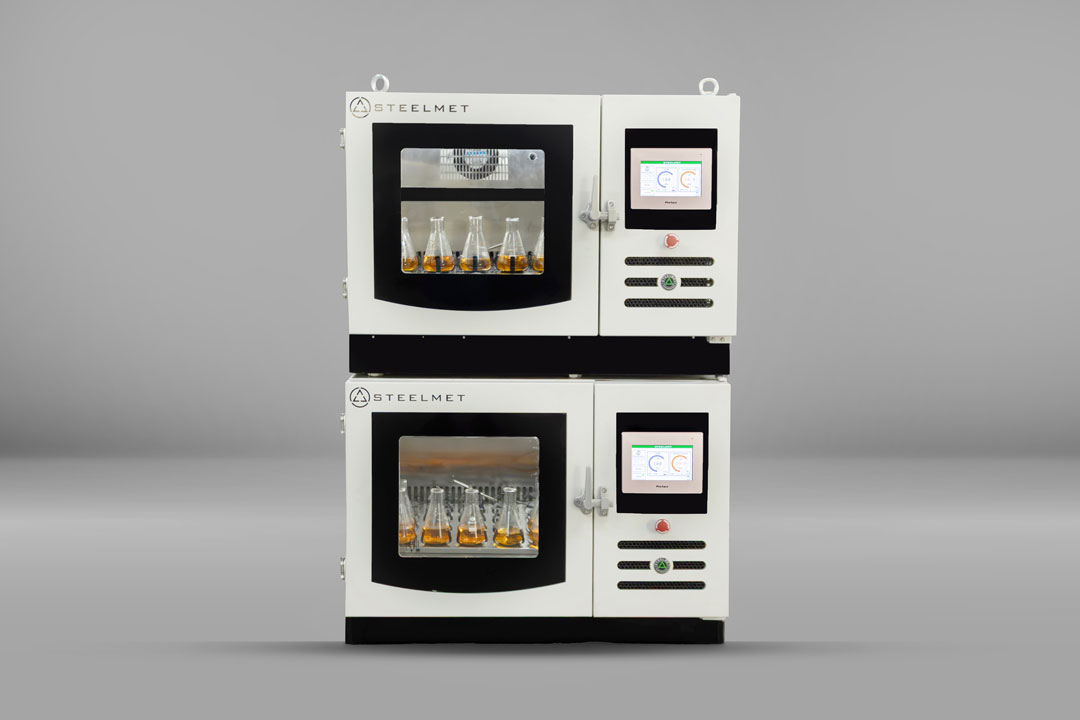

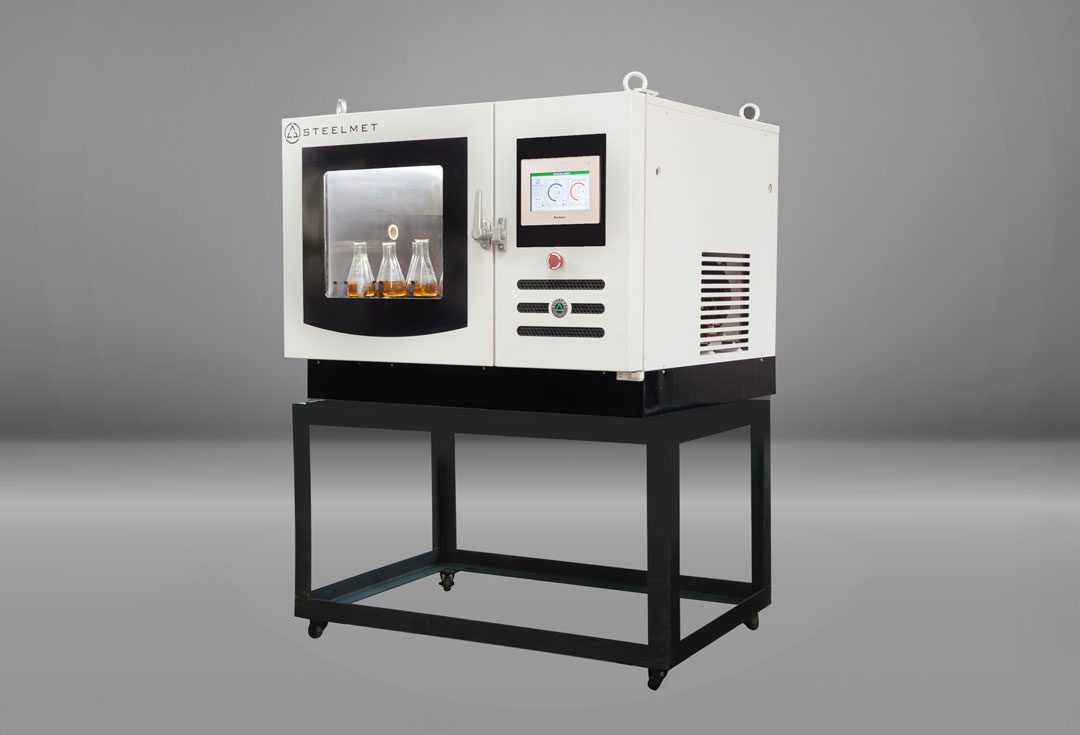

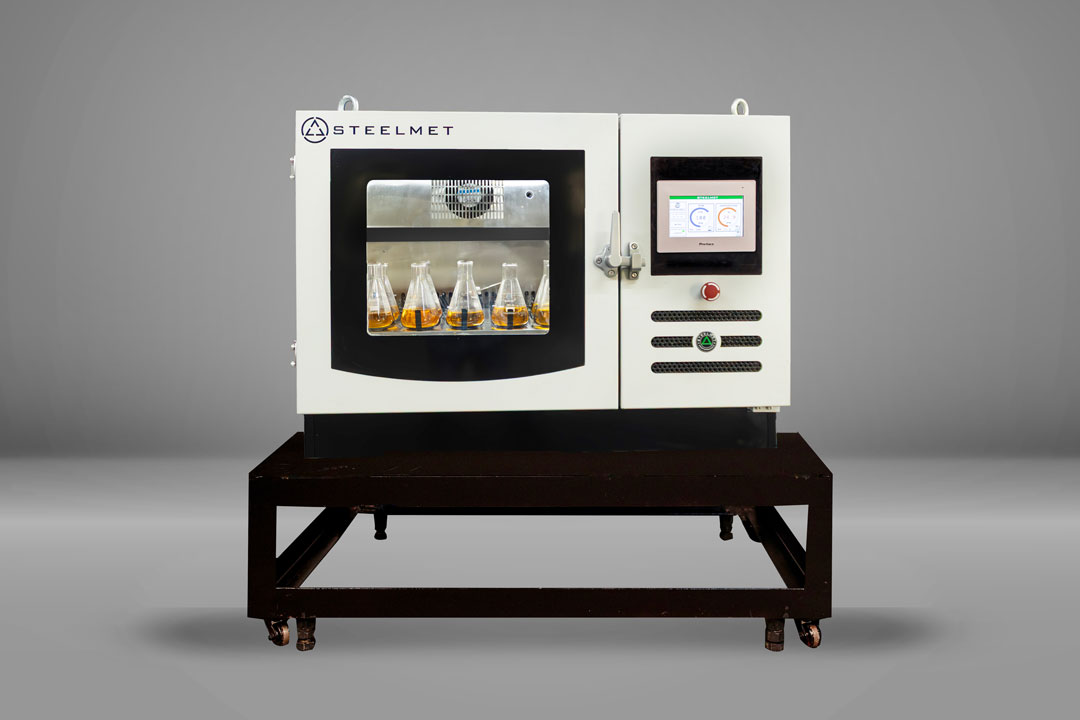

Stackable Incubator Shaker Model - Manthan IS25 ( Can be stacked up to 2 units )
| Capacity | : | 25 clamps of 250 ml flasks or 16 clamps of 500 ml or 09 clamps of 1000 ml ( select any one ) Threaded holes to hold assorted clamps. |
| Platform Size | : | 21.2" x 18.1" |
| Working Chamber | : | D x W x H = 24.2" x 20.6" x 21.6" |
| Overall Dimension | : | D x W x H = 31.6" x 38.7" x 26.3" |
| Shaking Orbit | : | 12.5 mm or 25 mm or 50 mm ( customized orbit available on request ) |
| Speed | : | 500 RPM @ 12.5 mm Orbital Stroke 400 RPM @ 25 mm Orbital Stroke 300 RPM @ 50 mm Orbital Stroke |
| Control system | : | Microprocessor based control system or HMI PLC with data logging facility provided ( optional ). |
| Temp. Range | : | 20 Degree Celsius below ambient to 60 Degree Celsius ( Mini temp 5 degree Celsius ) |
| Temp. accuracy | : | ( ± ) 0.2 Degree Celsius or better |
| Temp. Uniformity | : | ( ± ) 1 Degree Celsius or better |
| Alarm | : | temperature overshoot & undershoot alarm provided |
| Mechanism | : | Heavyduty longlasting mechanism with both obital & linear motion |
| Illumination | : | Inspection lamp provided. Illumination unit for photosynthesis can be provided ( optional ). |
| Power required | : | 230 V, 50 Hz single phase, 15 amp stabilized |
Stackable Incubator Shaker Model - Manthan IS15 ( Can be stacked up to 2 units )
| Capacity | : | 18 clamps of 250ml flasks or 09 clamps of 500ml flasks or 05 clamps of 1000ml or 01 clamp of 5000 ml. ( select any one ). threaded holes to hold assorted clamps. |
| Platform Size | : | 16" x 14" |
| Working Chamber | : | D x W x H = 16" x 18.5" x 16" |
| Overall Dimension | : | D x W x H = 22.5" x 33.5" x 24" |
| Shaking Orbit | : | 12.5mm or 25mm ( customized orbit available on request ) |
| Speed | : | 500 RPM @ 12.5 mm orbital stroke 400 RPM @ 25 mm orbital stroke |
| Control system | : | Microprocessor based control system or HMI PLC with data logging facility provided ( optional ) |
| Temp. Range | : | 20 Degree Celsius below ambient to 60 Degree Celsius ( Mini temp 5 degree Celsius ) |
| Temp. accuracy | : | ( ± ) 0.2 Degree Celsius or better |
| Temp. Uniformity | : | ( ± ) 1 Degree Celsius or better |
| RPM Accuracy | : | ( ± ) 2 RPM or better |
| Alarm | : | temperature overshoot & undershoot alarm provided. |
| Mechanism | : | Heavyduty longlasting mechanism with both obital & linear motion. |
| Illumination | : | Inspection lamp provided. Illumination unit for photosynthesis can be provided ( optional ) |
| Power required | : | 230V, 50Hz single phase, 15amp stabilized. |
